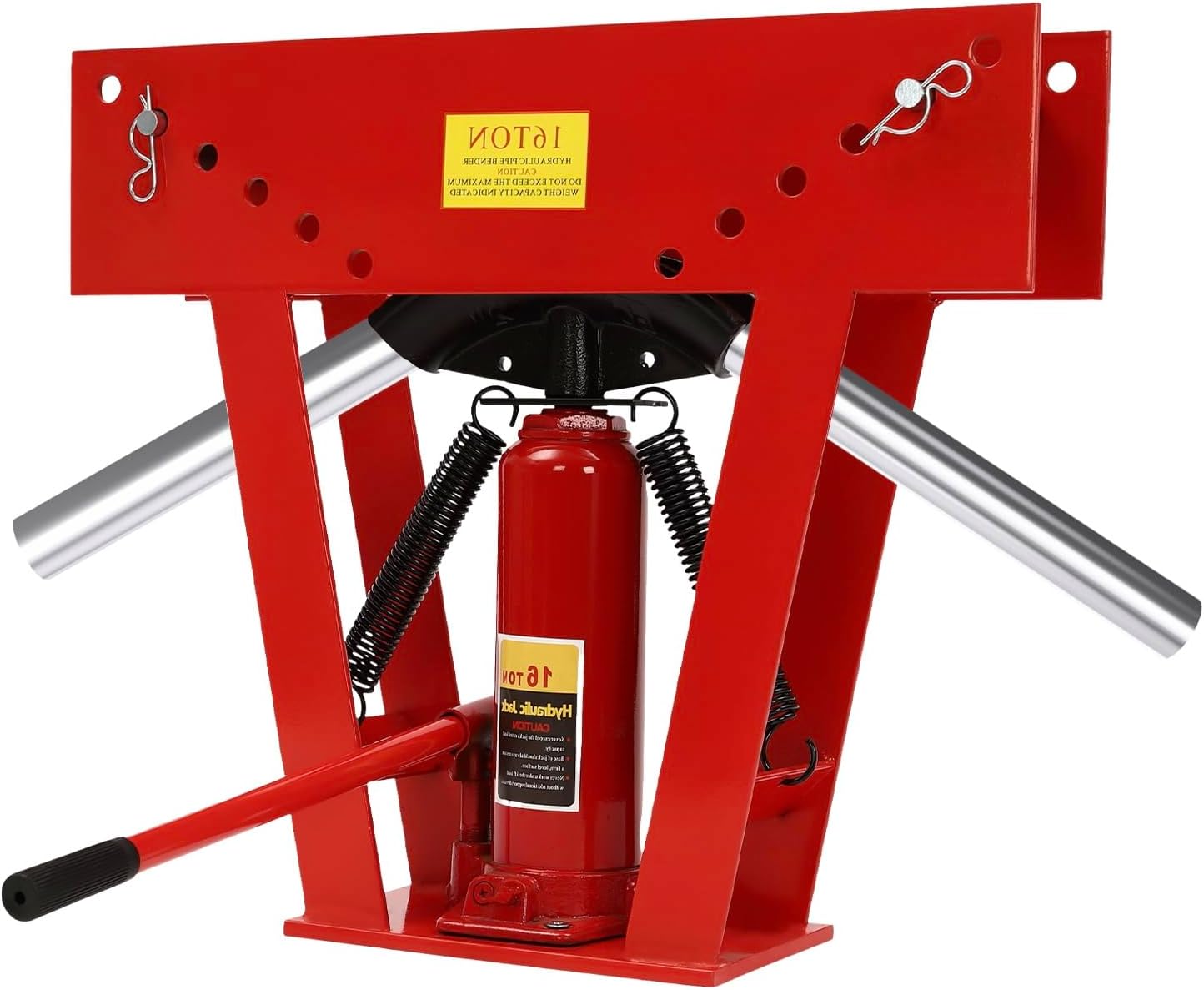

16T Hydraulic Pipe Tube Bender Tool, Heavy-Duty Manual Pipe Bending Machine with 8 Dies 1/2" to 3", for Metal Pipes, Construction

• Heavy-Duty 16T Capacity: Made of high-quality No.45 steel, Q235 steel, and cast iron, this hydraulic pipe bender ensures maximum durability and a long service life, handling pipes up to 3 inches with ease.
• 8 Interchangeable Dies for Versatility: Includes 8 different die sizes (1/2", 3/4", 1", 1-1/4", 1-1/2", 2", 2-1/2", 3") to bend various metal pipes, conduits, and water pipes, making it for construction, plumbing, and industrial use.
• Hydraulic-Assisted Bending for Effortless Operation: Unlike manual benders, the hydraulic jack system reduces labor intensity, allowing smooth 90°-180° bends with minimal effort—just press the hydraulic lever for precision bending.
• Adjustable & User-Friendly Design: Features 6 positioning holes for angle adjustment, self-resetting springs, and a comfortable rubber-grip hydraulic rod for safe, efficient, and repeatable bending.
• Wide Application & Portability: It for bending rigid conduits, metal tubes in construction, shipbuilding, mining, and oil industries.

Details

Hydraulic Rod: Its upper end is made of rubber for a comfortable feel, and the gear at the end is used to control the opening and closing of the valve.

Spring Design: Springs on both sides of the hydraulic unit help it to reset itself automatically.

Smooth Edge: The rounded and smooth edges not only add to the aesthetics of the product but also improve the safety of use.

Application

It is mainly used for pipe laying and maintenance and can bend most metal pipes, including water pipes, rigid conduits. It is suitable for construction, chemical, pipeline, petroleum, mining, shipbuilding, and other industries, which can improve productivity and the quality of pipe laying.

Specification

Material: No.45 Steel, Q235 Steel, Cast Iron

Color: Red

Style: Modern

Assembly Required: Yes

Hydraulic Oil Model: No.15

Hydraulic Oil Density: 1000g/cm³

Max. Working Pressure: 16T

Stroke: 235 mm / 9.25 in

Adjustable Height: 360-595 mm / 14.17-23.43 in

Bending Range: 1.3-7.6 cm/ 1/2 - 3 in

Die Diameter: 1/2", 3/4", 1", 1-1/4", 1-1/12", 2", 2-1/2", 3"

Product Size: 65*18*56 cm/ 25.59*7.09*22.05 in

Package Size: 68*63*19 cm/ 26.77*24.8*7.48 in

Gross Weight: 52 kg/ 114.64 lbs

Net Weight: 50 kg/ 110.23 lbs

Package Included

1* 16T Hydraulic Jack

8* Dies

1* Hydraulic Rod

2* Screws

Notes

1. Please read the product label carefully before using it.

2. Please note that when bending thin-walled pipes or conduits, a metal inner mold with the appropriate bore size should be placed inside the pipe.
