About this item

• Professional Tool: This product is designed to improve the accuracy and convenience of testing and measurement in the repair of accident vehicles, with few limitations of the site or equipment, and will not damage the car body. You can make precise measurements with this ruler, which is convenient for you to make a reasonable judgment on the condition of your car.
• High Precision: It has a measurement error of ±1mm, together with its high-precision structure design, which ensures the accuracy of your measurements. With its high strength, small size, light weight, and equipped CD that includes the usage video, one person can master the usage as soon as possible and complete measurements independently.
• Complete Set: The kit includes 3 measuring scales, different types of probes, and other accessories, allowing you to choose the most appropriate tool for the measurement situation, making measurement work easier and less laborious. The carrying case with grooves, buckles, and a handle can store these tools safely and make it easy to carry to the workplace.
• Build to Last: High-quality aviation aluminum and an exquisite electrophoresis process make this product sturdy, wear-resistant, and not easy to rust and deform, ensuring a long service life. With excellent performance, this product is a great gift for family, friends, and others who often need repairing cars, making their work safer and easier.
• Application: It can measure many parts such as the vehicle chassis, doors, windows, trunk, engine compartment, wheelbase, and so on. (Note: 1. Please do not come into contact with fire, rubber water, asphalt, and other substances. In case of inadvertent contact with paint and other liquids, please rinse it off immediately with a small amount of water. 2. Please note that the magnetic probe of this product will tilt after use, please do not pull it out vertically to avoid-injury.)

How to Use

1. When measuring small dimensions up to 35.43in, a drawing-measuring ruler is not required. Use the slide rule according to the position of the distance measuring point.

2. The level (level in the level display) displays the measured value. Read the measurement reading on the slider.

3. When measuring dimensions of approx. 70.87in, use the stretched inner bar and measure according to the level displayed on the level meter. The measurement reading is read on the slider holder. Smoothly pull the scale (at the level shown on the level meter) during the measurement.

4. The vertical scale is located directly at the point of measurement, is adjustable up and down, and is screwed in the vertical position to maintain the level (at the level shown on the level meter).

Specifications

Material: Aviation Aluminum

Process: Electrophoresis

Style: Modern

Color: Blue, Black

Assembly Required: Yes

Measurement Error: ±1mm/0.04in

Measurement Range:

X-axis: 200~2250mm/7.87~88.58in

Y-axis: 20~150mm (or 340 mm)/0.79~5.91in(or 13.39in)

Z-axis: 20~150mm (or 340 mm)/0.79~5.91in(or 13.39in)

Scale Length: 95cm/37.4in; 38cm/14.96in; 17cm/6.69in

Package Size: 21*102*10cm/8.27*40.16*3.94in

Gross Weight: 4.2kg/9.26lbs

Net Weight: 3.5kg/7.72lbs

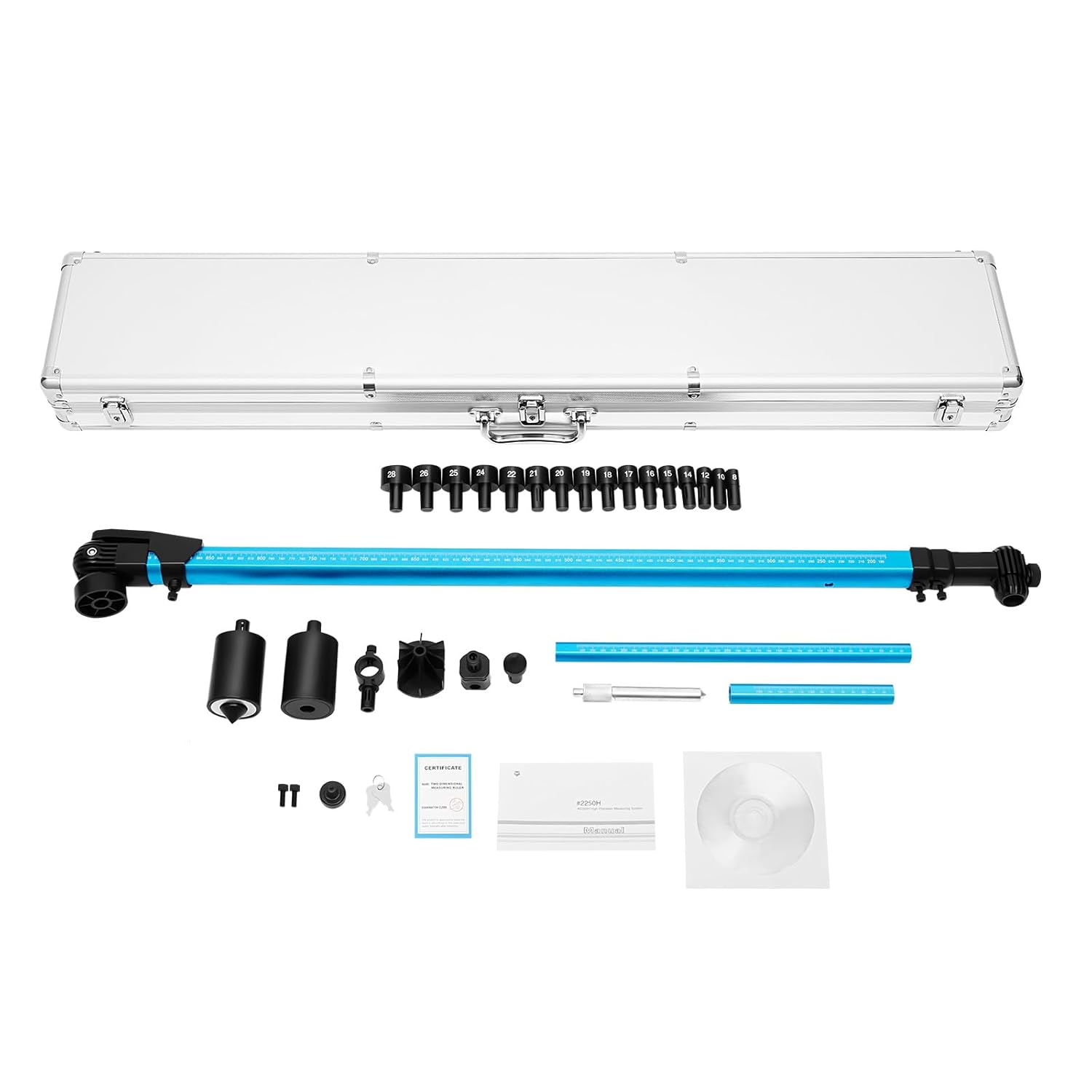

Package Included

1Set * High-precision 2D Measuring Ruler System

1* CD

1* Chinese & English Manual

All Accessories for Assembly

Notes

1. Please double-check the size before ordering.

2. Please read the instructions before use to ensure that the measuring ruler can be used correctly.

3. Please note that this product is made of aluminum and should be handled with care when in use. It is strictly forbidden for heavy objects to touch.
