About this item

• 【High-Speed 370W Motor & 11-Gauge Blades】Strip wires at 65ft/min with pure copper motor power. 10 precision-ground steel blades fit 11 wire sizes (1.5mm-38mm/0.06"-1.5"), eliminating blade adjustments for faster processing.
• 【Safety-Focused Design & Durable Build】High-rigidity aluminum alloy housing with transparent operation panel + emergency stop button. Engineered for stable, accident-resistant use on desktops (includes mounting screws).
• 【Dual Electric/Manual Modes & Precision Control】Backup hand crank ensures continuous operation during motor downtime. 45-gauge feed wheels and screw-adjustable blades deliver millimeter-accurate stripping depth.
• 【Effortless Setup for All Skill Levels】Simply insert wire, select gauge, and start stripping. Beginner-friendly operation with ergonomic handwheel and intuitive blade height adjustment nut.
• 【Universal Wire Compatibility】Processes scrap wire, single-core cables, stranded/round sheathed wires (1.5-38mm). Ideal for harnesses, aerospace wiring, audio/data cables, and wire recycling.

Description

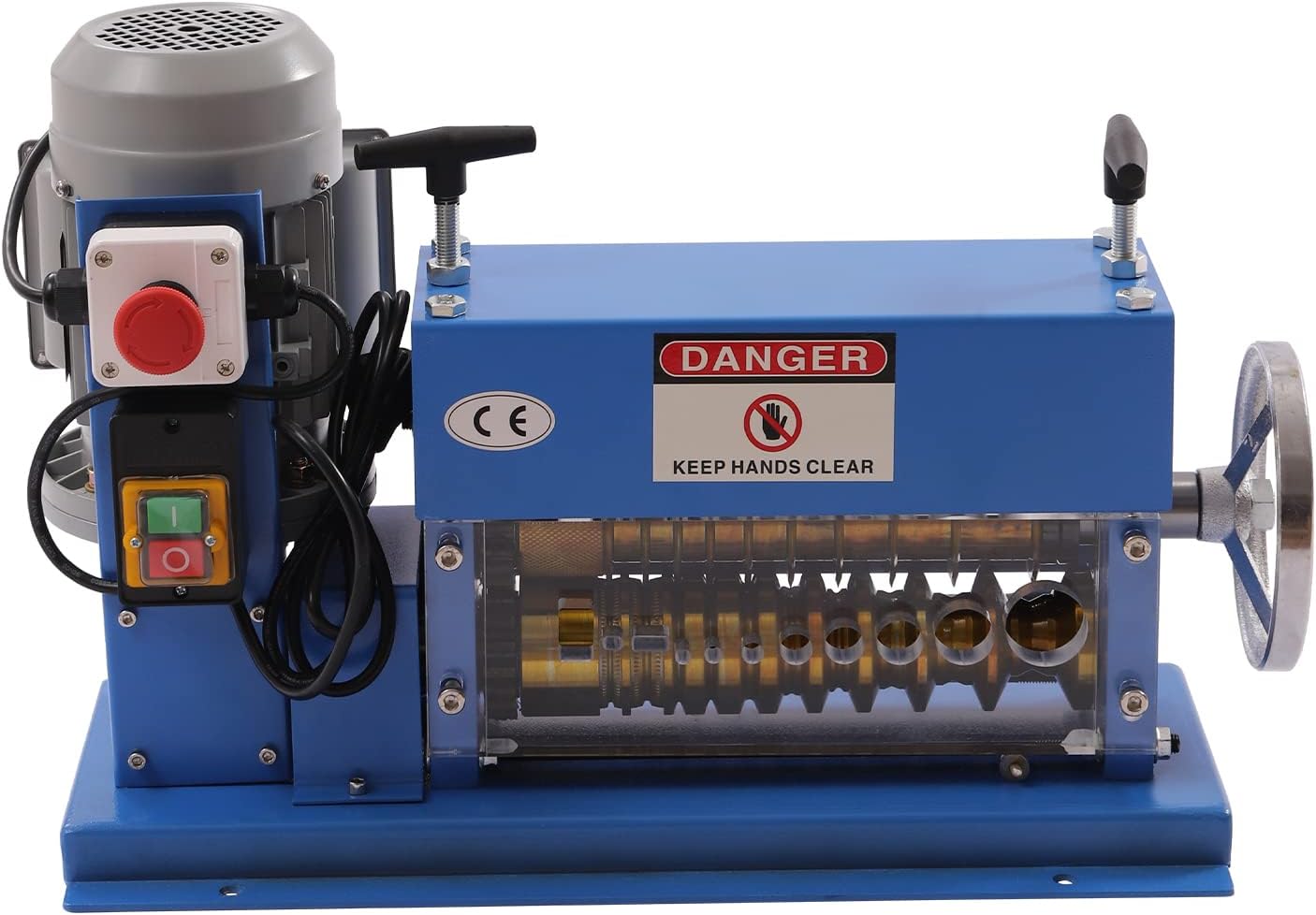

This 11-channel, 10-blade cable wire stripping machine is equipped with an efficient motor for high efficiency and a wide range of wire stripping. It is also designed with an emergency stop button for safe operation. The high-quality aluminum alloy and iron materials give it excellent durability.

Details

Large Stripping Range: The wire stripping tool has 11 different sizes of wire holes. So you don't have to adjust the blade every time you choose a thicker or thinner one. It can meet the stripping requirements of 1.5mm-38mm/0.06-1.5in wire, so it has strong applicability.

Adjustable Nut: You can adjust the height of the blade to suit various cable sizes by simply turning the blade adjustment knob.

Hand Crank: The hand crank is designed to be very ergonomic and easy to turn.

Bottom Plate Fixing: There are bottom plate fixing holes at the bottom of the machine and corresponding fixing screws are provided in the package, so that the machine can be stably fixed on the desktop and not easy to slide.

Application

It is suitable for scrap wire, single core wire, loose wire, round wire with sheath, etc of 1.5mm-38mm/0.06-1.5inch in diameter and is widely used in wiring harness processing, aerospace wire processing, audio and data line processing, wire recycling dismantling and other industries.

Specification

Color: Blue

Material: Aluminum Alloy + Iron

Blade Material: High-Speed Steel

Wire Feed Wheel Material: 45 Gauge Steel

Surface Finish: Sprayed and Baked

Voltage: 110V/ 50-60Hz

Power: 370W

Current: 2.9A

Speed: 1400r/min

Channel of Cutters: 11

Cutting Blades: 10

Stripping Diameter: 1.5mm-38mm/0.06-1.5in

Stripping Speed: 65 ft/min, 20 m/min

Blade Thickness: 3 mm/0.12 in

Blade Diameter: 69mm/2.72in

Plug: US Standard

Gross Weight: 26kg/57.32lbs

Net Weight: 24.5kg/54lbs

Product Size: 58*28*37cm/22.83*11.02*14.56inch

Package Size: 52*36*42.5cm/20.47*14.17*16.73inch

Notes

It is recommended to remove the hand wheel when using it, as it will be safer.
