Accusize Industrial Tools 4-7\/8" 33pc transfer Punch Set, 1\/2" - 1" by 64ths, 0250-0033
Accusize Industrial Tools 4-7\/8" 33pc transfer Punch Set, 1\/2" - 1" by 64ths, 0250-0033
Low stock: 2 left
SKU:B0DKYNJYCD
Couldn't load pickup availability
Product description
-
3/32"-1/2" x 64ths
Size: 3/32"-1/2" by 64ths plus 17/32"
Heat treated & tempered.
HRC 61-63
Item No: 0250-0028
-
1/2" - 1" x 64ths
Size: 1/2" - 1" by 64ths
Heat treated & tempered.
HRC 61-63
Item No: 0250-0033
-
1.0 - 13.0mm x 0.5mm
Size: 1.0mm - 13.0mm by 0.5mm
Heat treated & tempered.
HRC 61-63
Item No: 0250-0025

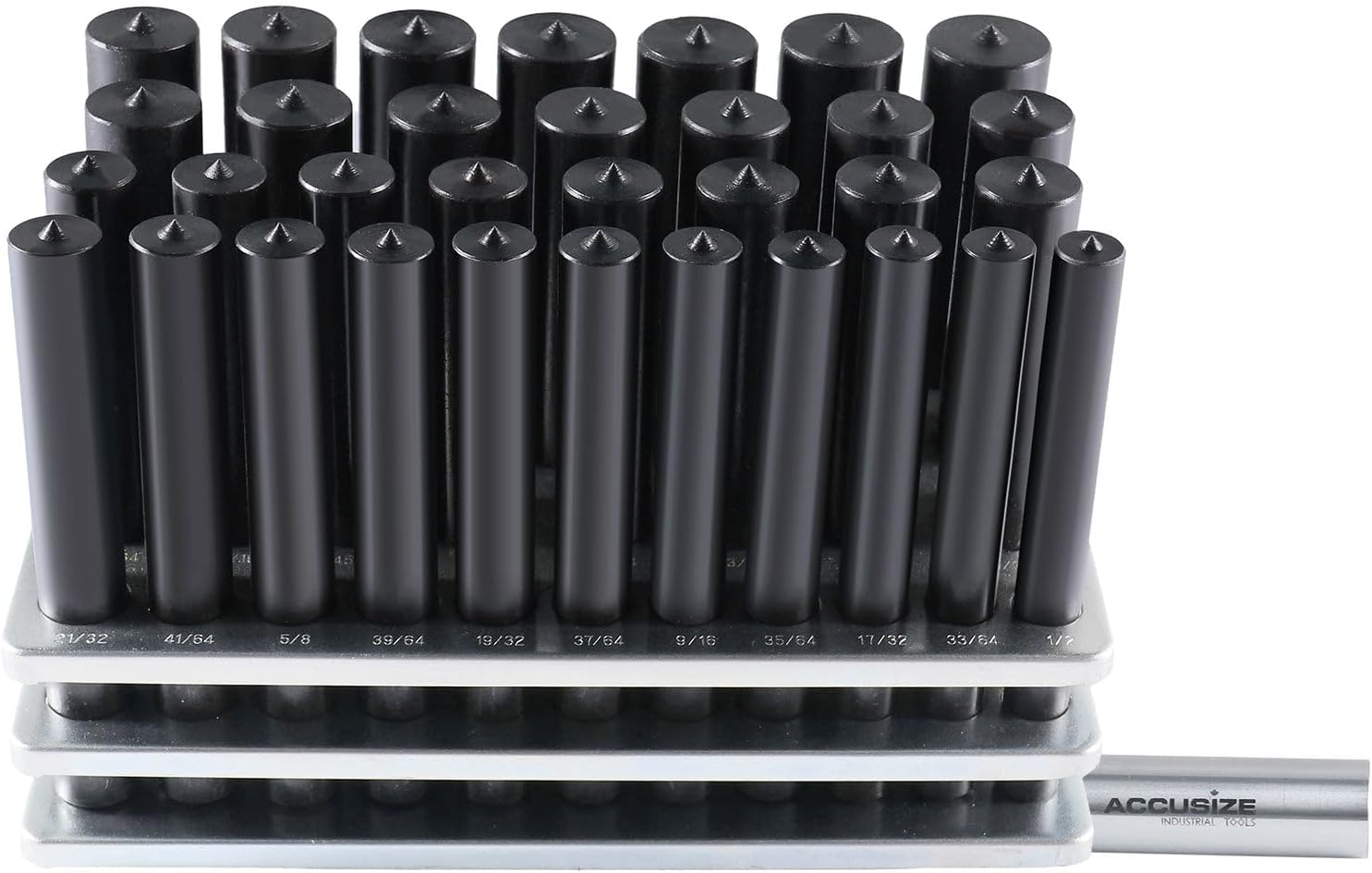

Accusize 4-7/8" Transfer Punch Set
Features
-
Materials and Dimensions
For Accurate Transferring of Drilled or Tapped Holes.
HRC 61-63 approximately 1-1/2" from the point.
Heat-treated & tempered.
Length: 4-7/8".
Black oxide finish.
-
Supplied with stand.
Stand of Sturdy Steel Case
Stands of Accusize transfer puch sets are marked with the size of each transfer punch
-
Transfer punches are ideal for accurately marking hole positions when aligning two parts and matching through holes. Simply position the punch in the existing hole, then tap the punch with a hammer to mark the exact center onto the plate below for precise drilling.
Usage
Transfer punches are ideal for accurately marking hole positions when aligning two parts with matching through holes. Simply position the punch in the existing hole, then tap the punch with a hammer to mark the exact center onto the plate below for precise drilling.
Options of Accusize Transfer Punch Sets
-
Setup on Drill Press
Align the round stock in a drill press and ensure it’s vertically positioned with a guide block.
-
Initial Mark
Level the drill press table and mark the exact center line of the round stock.
-
Center Drill
Drill a pilot hole using a center drill to reduce wobble. (Optional)
-
Drilling Hole
Drill to the final dimension with a short, stubby drill bit for better accuracy.
-
Result
Tip of Use Transfer Punches: Drilling Holes on Workpieces
