• KEZERS 36X Automatic Optical Level Kit with Tripod, High Precision Auto Level, Self-Leveling Tool for Builders, Transit Level Kit with Aluminum Survey Tripod,16FT Grade Rod, Carrying Case
1 1

KEZERS 36X Automatic Optical Level Kit with Tripod, High Precision Auto Level, Self-Leveling Tool for Builders, Transit Level Kit with Aluminum Survey Tripod,16FT Grade Rod, Carrying Case

KEZERS 36X Automatic Optical Level Kit with Tripod, High Precision Auto Level, Self-Leveling Tool for Builders, Transit Level Kit with Aluminum Survey Tripod,16FT Grade Rod, Carrying Case

Low stock: 2 left

B0D5Y7T4LG

$223.99
$223.99
Sale Sold out
Shipping calculated at checkout.

Product description

transit level

How to use the Transit Level?

1. Distance measurement

  • Point the staff gauge, get the reads of upper&lower, denote the two values "a" and "b"
  • Subtract two numbers and multiply by 100 is the true distance
  • The distance between A and B =(a-b)*100m

2. Height measurement

  • Set the staff gauge virtically at A and B, get the reading of A and B, denote the two values "a" and "b"
  • The hight distancebetween A and B is subtracting two numbers
  • The hight distance between A and B = a-b

3. Angle measurement

• Slight A with virtical hair, read cirde,get angle α • Turn instrument to slight B, get angl β • The angle distance∠AOB=α-β

transit level kit

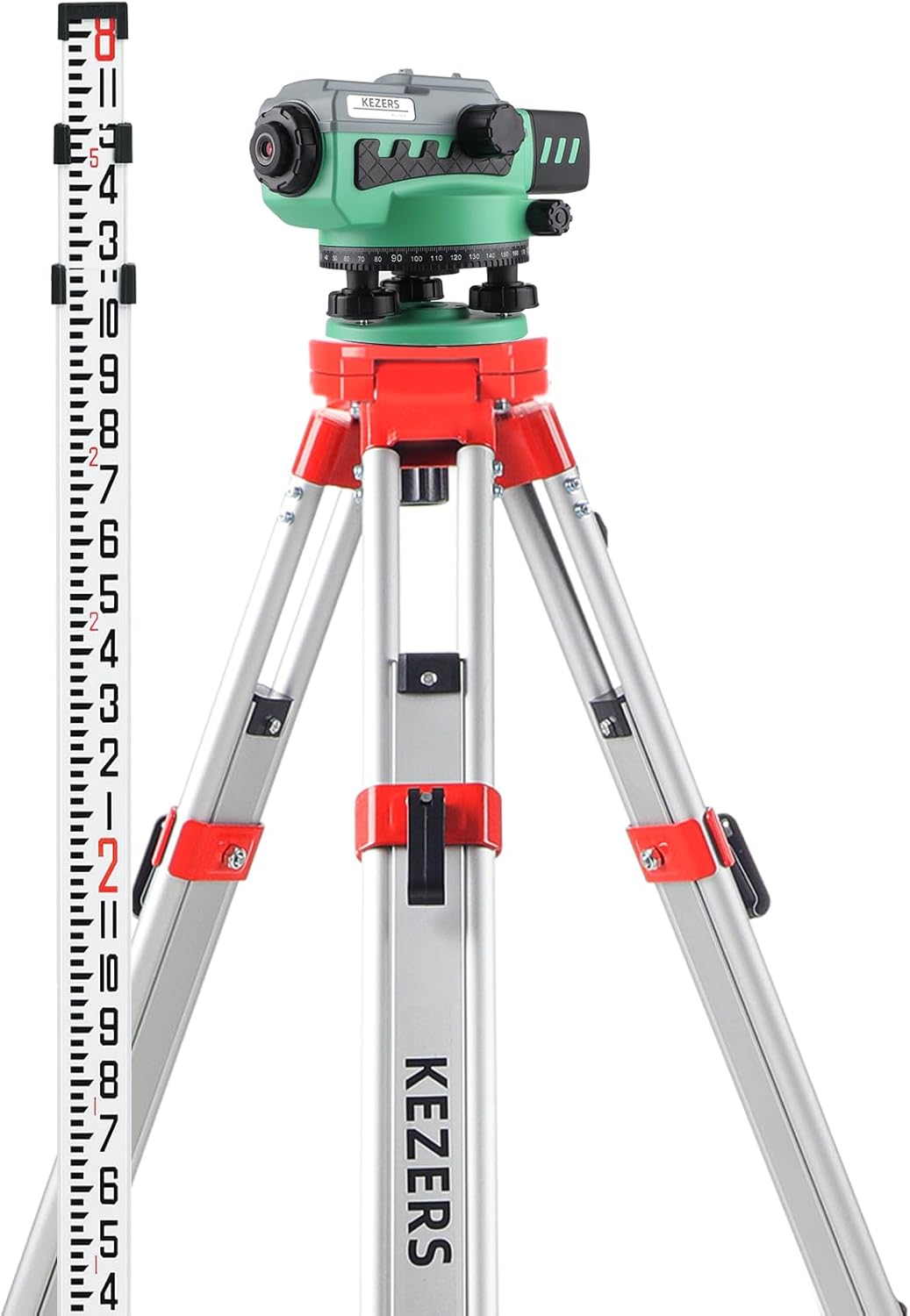

KEZERS 36X Transit Level Kit with Tripod

The KEZERS 36X automatic optical level features a circular bubble with a 90-degree bubble mirror, ±0.5″ auto-leveling, both horizontal/vertical cross hairs and Stadia lines, 36x magnification lens and large aperture for clear image. The range is 393 Ft. with accuracy up to 1/16 in. at 100 Ft.

Package Included:

~1 x KL-36X Optical Level ~1 x 16FT Grade Rod ~1 x Aluminum Surveying Tripod

transit level

36X High Precision Measurement

  • 36x magnification lens,it is able to provide accurate measurement of 1/16-inch at 100 feet, even in low-light conditions.
  • 393 feet HD visible distance, round-trip per kilometer deviation is only 1mm which will reduce handling, improve work efficiency

transit level

Self-Leveling Optical Level

  • Horizontal bubbles can be automatically leveling as long as they have not yet running out of the circle within 15 ', do not worry about accuracy.

transit level

IP54 Protection

  • KEZERS KL-36X Optical Level features IP54 protection for weather resistance,dust resistance.

transit level

5/8“-11 Mounting Thread

  • This automatic transit level support 5/8"-11thread mouting,you can install it on most laser level tripod,very easy and convenient.

Specifications

Magnification 36X
Working Range 393Ft
Standard deviation per Km ( double run leveling ) 1.0 mm
Telescope Image erect
Objective Aperture 36mm
Field of View 1°20’
Setting Accuracy ±0.5"
Stadia Ratio 100
Stadia Addition 0
Accuracy of Circular Vial 8’/2mm
Horizontal Circle Graduation 1° or 1 gon
Tripod Mount Thread 5/8”-11

Variety of Usage

transit level
