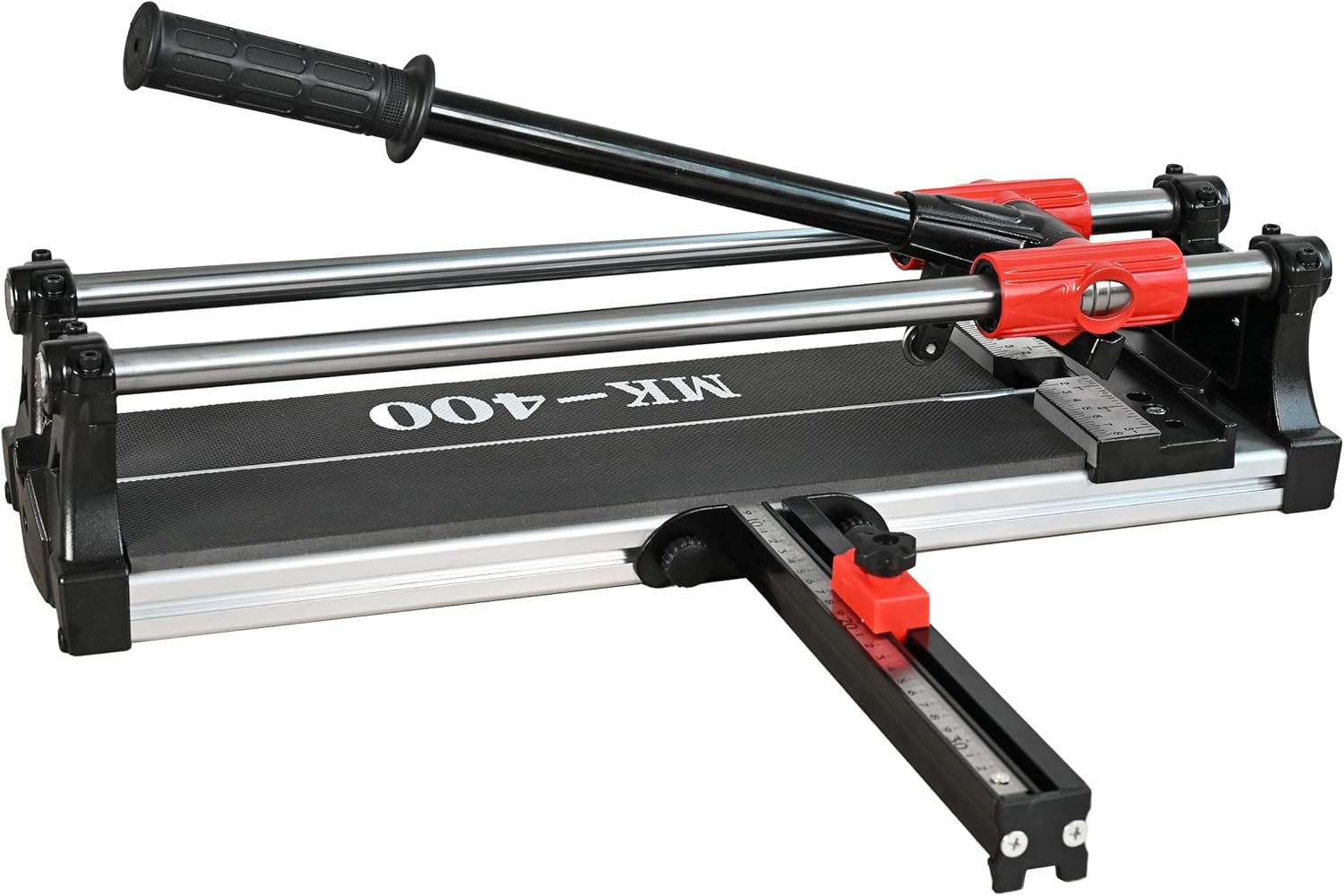

ROJOO 16 inch Double Guide Rails Manual Tile Cutting Machine Wide Aluminum Bottom Plate Ceramic Porcelain Floor Tile Cutter Heavy Duty 400mm\/40cm R2818T040
ROJOO 16 inch Double Guide Rails Manual Tile Cutting Machine Wide Aluminum Bottom Plate Ceramic Porcelain Floor Tile Cutter Heavy Duty 400mm\/40cm R2818T040
Low stock: 2 left
SKU:B0FH9L618S
Couldn't load pickup availability
Product description
Model:R2823T040
Material: Aluminium,Steel
Max. cutting size: 16" /400 mm
Min. cutting size: 1.38" / 35 mm
Cutting thickness: 0.24"-0.59" / 6-15 mm
Guide rail: Two-track 20mm diameter
Package size:24.8 x 7.48 x 6.3 inch / 63 x 19 x 16 cm
Item weight: 13.3 lbs /6 kg
Using high-strength aluminum material
Durable aluminium material
The guide rail base is made of cast aluminium
The base is made of aluminium profile
Linear bearing sliders
Unique design of linear bearings
Aluminium slider for flexible sliding
Stable guide rail
Using two 20mm diameter tracks
Rulers
Supporting feet with a scale,
Durable aluminum alloy material
Stopper
Convenient to fix in the specified size,
Very suitable for repeatedly cutting tiles of the same size
Cutting wheel
Blade material:Tungsten steel alloy
Size:22*6*6mm(Outer diameter:22mm).
Step 1.Positioning
1.Adjust the sliders on both scales.
2.Hold the handle with one hand and move the slider to the end of the track.
3.Lay the tile flat on the base so that one side of the tile lies against the aluminum block printed with the scale. another side rests on two plastic sliders.
Step 2.Lineation
1.Move the handle so that the knife wheel touches the edge of the tile.
2.Move the handle forward so that the cutting wheel marks a straight line on the tile. If this line is not continuous, it may not be possible to cut the tile.
Step 3.Cutting
1.Raise handle and pull backward gently to make pressing block settled steadily on the front end of the tile. Push down with adequate force and your tile will be divided separately along the line.
